Lindsay Shaw Photography- 0080Guide catheters are commonly used to access endovascular sites and deliver balloons, stents, guide wires, contrast media and other devices.  These catheters are costly and challenging to manufacture due to complex shaft requirements.  These include a lubricious inner layer for easy passage of devices; a braided stainless steel middle layer for torque transmission and support; and an outer layer that varies from a flexible distal end to minimize intravascular wall damage and thrombosis generation to a more rigid proximal end for pushability.

Traditionally, these complex shafts have been manually assembled from discrete components and heated to create the final component.  This is costly and presents challenges for validating a highly manual manufacturing process.  Product performance can also vary due to poor bonding between the layers and at the interface of the discrete segments on the outer layer, where hinge points occur.

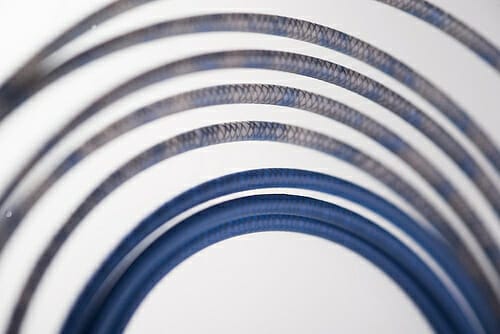

Putnam Plastic’s Tri-Tie™ technology eliminates the traditional manual approach with a proprietary, continuous processing method to create a fully integrated composite shaft.   Tri-Tie™ shafts incorporate the traditional three-layer approach with some modifications to improve performance and reliability.

The lubricious inner layer is designed with a fully bondable outer surface.  This allows the outer layer of the shaft to penetrate the middle braid layer and securely bond to the inner layer, creating an integrated structure.  Discrete outer layer segments and hinge points are eliminated with Putnam’s proprietary intermittent extrusion process whereby polymers of varying durometer are applied along the length of the shaft in a single extrusion.

Tri-Tie™ guide catheter shaft manufacturing rethinks the conventional approach to achieve a more integrated and reliable component, at a lower cost.  While the technologies and materials used for this process have a proven track record in vascular catheter applications, the combination of these technologies in a single component is a hallmark of Putnam’s innovative approach.

Tri-Tie™ extrusion technology provides four key benefits over the conventional approach:

  1. Integrated bonding between the outer and inner layer ensures reliable shaft performance.
  2. Continuous, variable durometer outer layer eliminates bonded segments and associated kink/hinge points.
  3. Elimination of discrete components and manual operations improves quality and validation.
  4. Continuous manufacturing offers substantial cost savings over conventional methods.
